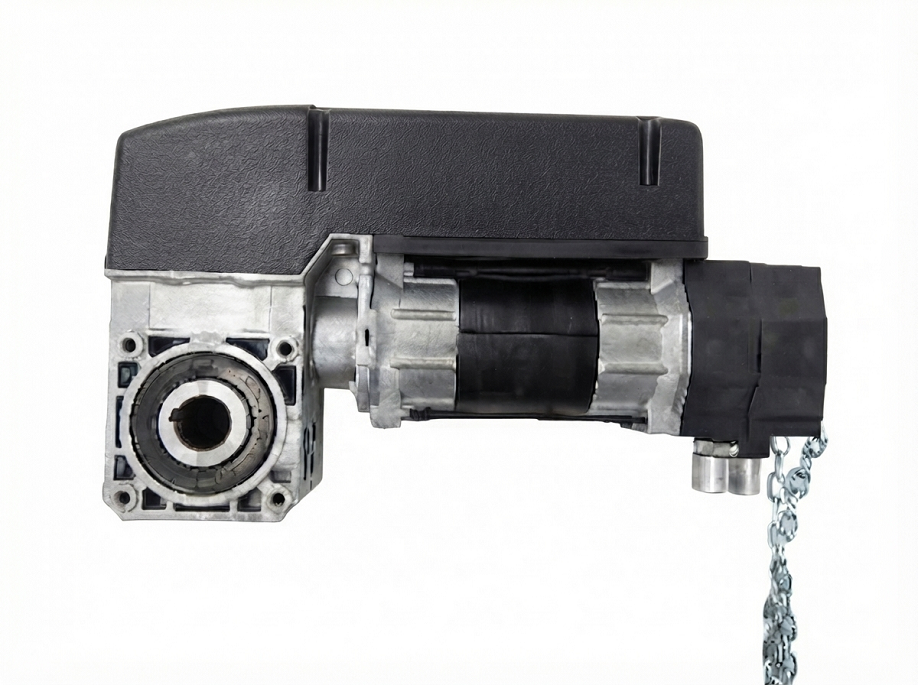

DTDC DIRECT DRIVE 380V Automation for Sprung Roller Shutters

380V direct drive automation for spring balanced roller shutters, with integrated mechanical limit switches and manual override.

Features

Integrated mechanical limit switches
Thermal overload protection

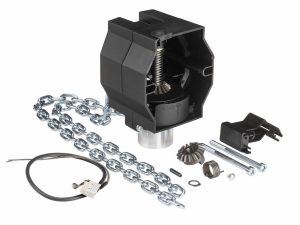

Chain manual override (crank or chain)
Robust, strong and durable
Flexible control options
Up to 13 revolutions
Noise level <70 dB
3 phase 380V

Specifications

Integrated Mechanical Limit Switches; Thermal Overload Protection; Chain Manual Override (crank or chain); Voltage: 400V AC @ 50 Hz (Three Phase); Current: RATING 1.9 A; Torque: 140 Nm

Voltage	400V AC @ 50 Hz (three phase)
Current rating	1.9 A
Torque	140 Nm
Motor output	0.45 kW
Speed	12 rpm
Duty cycle	60% < 20 operations / hr (dependent on door size)
Shaft diameter	30 mm (8 mm keyway)
Protection	IP54
Operator dimensions	361 x 105 x 245 mm
Weight	Approx. 16 kg

(The Company reserves the right to amend product specifications and information without notice.)

Downloadable Resources

Download Spec Sheet
