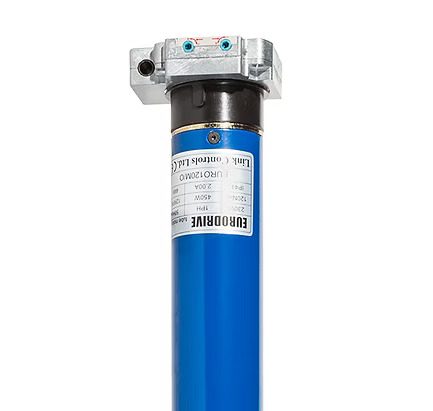

EURODRIVE 120 TUBULAR MOTOR

R11 705,85 Incl. VAT

Manual override tubular motor with through-drive override, silent operation, mechanical limits, and adaptors for round and octagonal tube applications.

Specifications: Manual Override – Through drive; Silent Operation; Mechanical Limits; Current: 2.00 A; Torque: 120 Nm; Speed: 12 RPM

FEATURES
Manual override – through drive Silent operation Mechanical limits Adaptors to suit round and octagonal tube From 29mm offset including mounting bracket Wide range of control options Manufactured to high European standards
SPECIFICATIONS
POWER SUPPLY	230V 50Hz
CURRENT	2.00 A
POWER	450 W
TORQUE	120 Nm
SPEED	12 RPM
LIFTING CAPACITY	180kg @ 100mm; 200kg @ 90mm; 210kg @ 70mm
STANDARD ADAPTORS FOR TUBES	101.6mm x 3.66mm (94mm); 101.6mm x 1.63mm (97mm); 90 x 2mm (85mm); 89mm x 1.5mm (85mm); 80mm x 2mm (75mm); 70mm Octagonal (67mm)

(The Company reserves the right to amend product specifications and information without notice.)

Downloadable Resources

Download: Eurodrive Manual Override Tubular Motor ED120 Datasheet (PDF)
