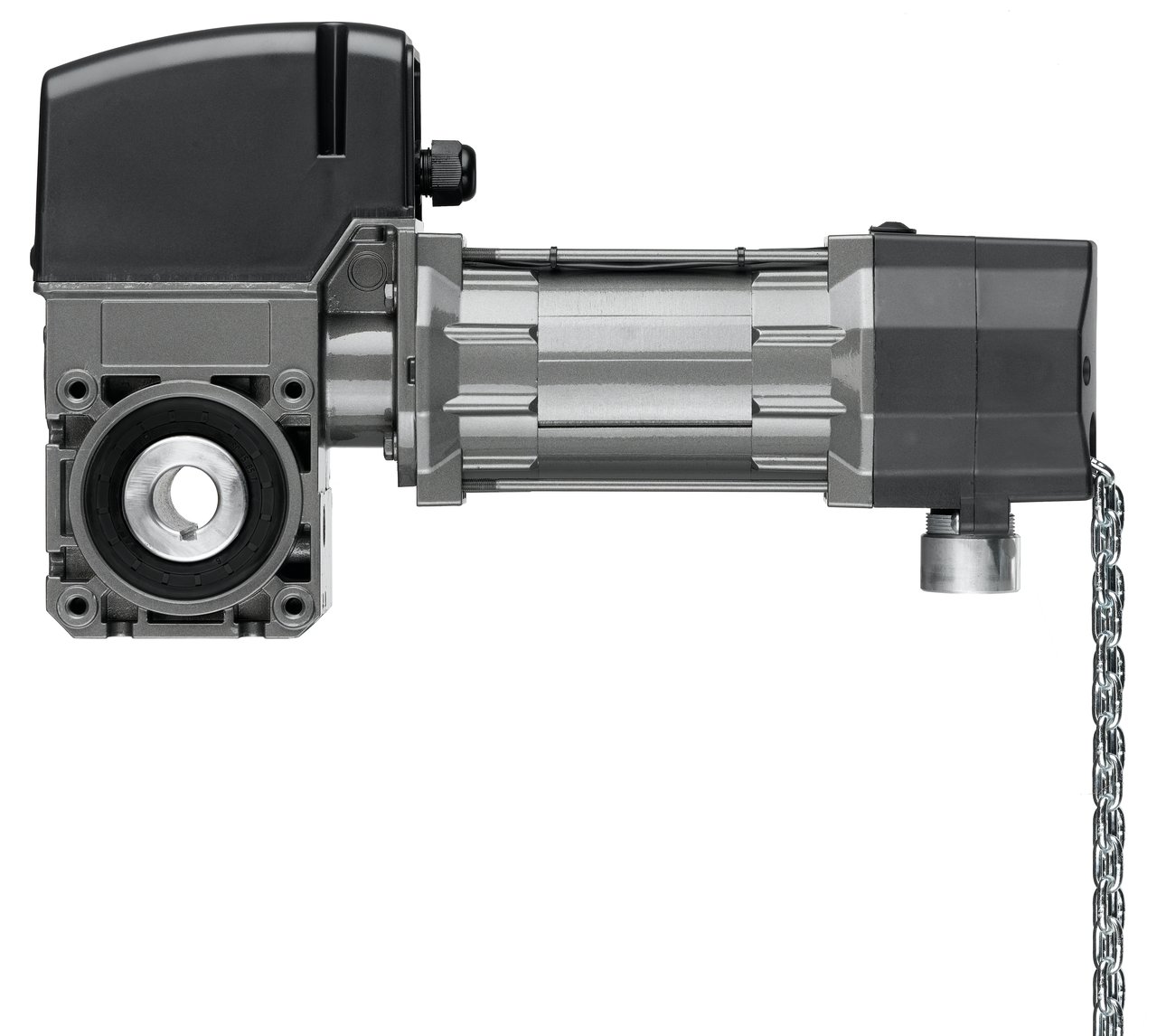

The Marantec STA1-10-24 60% is a reliable industrial sectional door drive designed for smooth and efficient operation in commercial and industrial environments. It offers consistent performance for medium-duty applications with dependable motor control.
Specifications: 3 Phase 380V; Emergency hand chain available; Emergency hand chain with maintenance release available (optional); Voltage: 380V / 3 PH; Current: INPUT 2.0 A – 3.5A; Torque: 100 Nm
| FEATURES | |
|
|
| SPECIFICATIONS | |
| VOLTAGE | 380V / 3 PH |
| CURRENT INPUT | 2.0 A – 3.5A |
| TORQUE | 100 Nm |
| MOTOR OUTPUT | 0.37 KW |
| SPEED | 24 Rpm |
| DUTY CYCLE | 20 operations / Hour (Dependent on door size) |
| SHAFT DIAMETER | 25.4mm (8mm keyway) |
| TEMPERATURE RANGE | -20º to +60º |
| PROTECTION | IP65 |
| DIMENSIONS | 409 x 104 x 245mm |
| WEIGHT | 15 Kg |
|
|
|
The Marantec STA1-10-24 60% is a reliable industrial sectional door drive designed for smooth and efficient operation in commercial and industrial environments. It offers consistent performance for medium-duty applications with dependable motor control.
Specifications: 3 Phase 380V; Emergency hand chain available; Emergency hand chain with maintenance release available (optional); Voltage: 380V / 3 PH; Current: INPUT 2.0 A – 3.5A; Torque: 100 Nm
| FEATURES | |
|
|
| SPECIFICATIONS | |
| VOLTAGE | 380V / 3 PH |
| CURRENT INPUT | 2.0 A – 3.5A |
| TORQUE | 100 Nm |
| MOTOR OUTPUT | 0.37 KW |
| SPEED | 24 Rpm |
| DUTY CYCLE | 20 operations / Hour (Dependent on door size) |
| SHAFT DIAMETER | 25.4mm (8mm keyway) |
| TEMPERATURE RANGE | -20º to +60º |
| PROTECTION | IP65 |
| DIMENSIONS | 409 x 104 x 245mm |
| WEIGHT | 15 Kg |
|
|
|
