R15 818,25 Incl. VAT
The Marantec VTA14-61 is the first of Marantec’s premium DC direct-drive operators, designed for spring-balanced sectional doors. These operators are perfectly suited for used in domestic & light industrial applications. Optional battery backup.
Video: VTA Programming Instruction
| Supply voltage | 230V AC – 50Hz |
|---|---|
| Control voltage | 24VDC |
| Motor power | 0.15kW – 0.3kW |
| Output Torque | 25 Nm |
| Speed | 24Rpm |
| Lifting Capacity
|
Cable drum <160mm – 234kgs
Cable drum <220mm – 130kgs |
| Temperature range | -20°C to +60°C |
| Protection | IP54 |
| Duty Cycle | 20 Cycle per Hour |
| Manual Override | Pull Cord- Clutch Release |
| Battery backup- Optional | Backup 700 -7AH 24V |
(The Company reserves the right to amend product specifications and information without notice.)

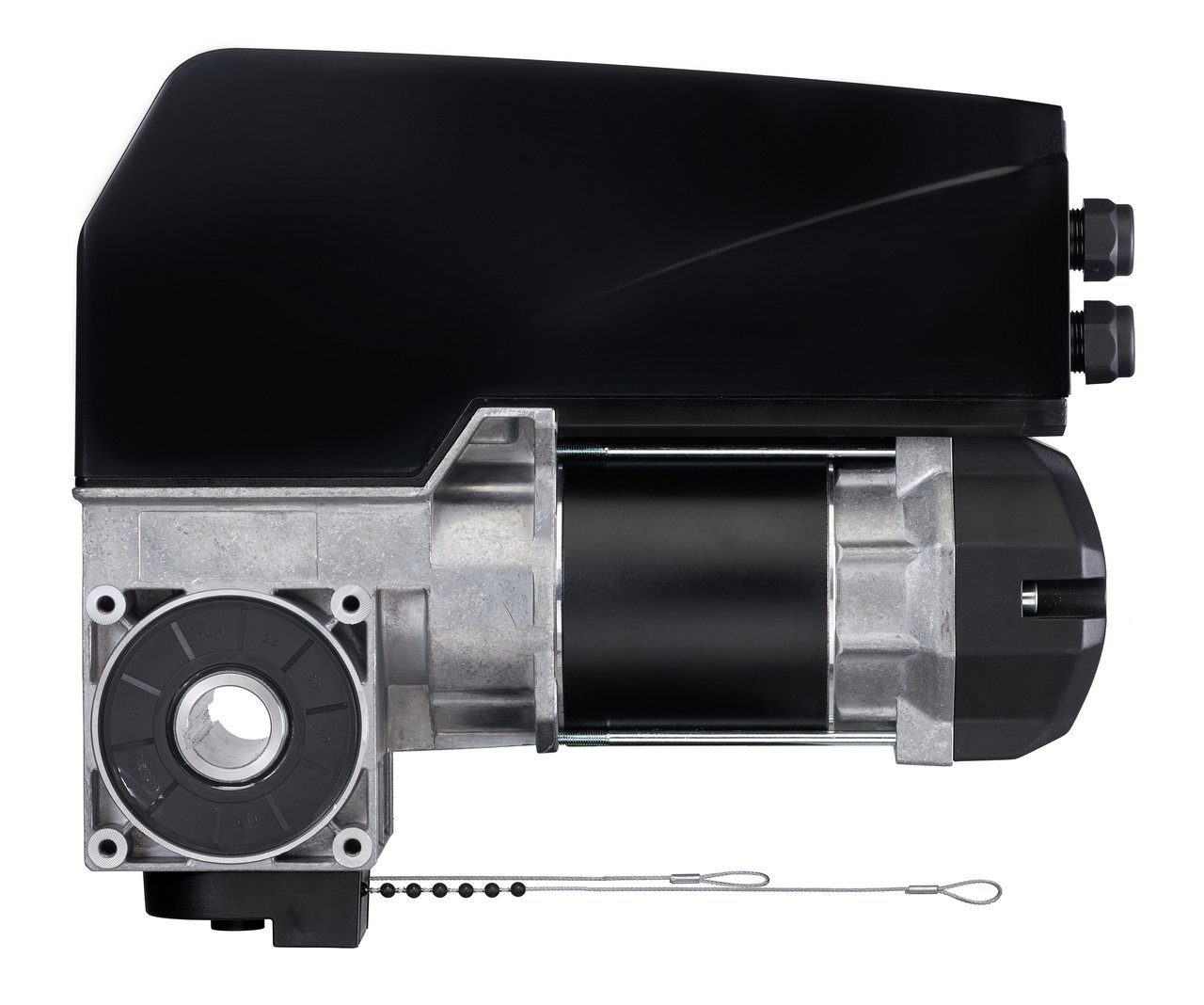

1x VTA 14-61 Motor with
1x CS-i 15 Push button station (7m cable)
1x Torque mounting bracket
R15 818,25 Incl. VAT
The Marantec VTA14-61 is the first of Marantec’s premium DC direct-drive operators, designed for spring-balanced sectional doors. These operators are perfectly suited for used in domestic & light industrial applications. Optional battery backup.
Video: VTA Programming Instruction
| Supply voltage | 230V AC – 50Hz |
|---|---|
| Control voltage | 24VDC |
| Motor power | 0.15kW – 0.3kW |
| Output Torque | 25 Nm |
| Speed | 24Rpm |
| Lifting Capacity
|
Cable drum <160mm – 234kgs
Cable drum <220mm – 130kgs |
| Temperature range | -20°C to +60°C |
| Protection | IP54 |
| Duty Cycle | 20 Cycle per Hour |
| Manual Override | Pull Cord- Clutch Release |
| Battery backup- Optional | Backup 700 -7AH 24V |
(The Company reserves the right to amend product specifications and information without notice.)
1x VTA 14-61 Motor with
1x CS-i 15 Push button station (7m cable)
1x Torque mounting bracket
