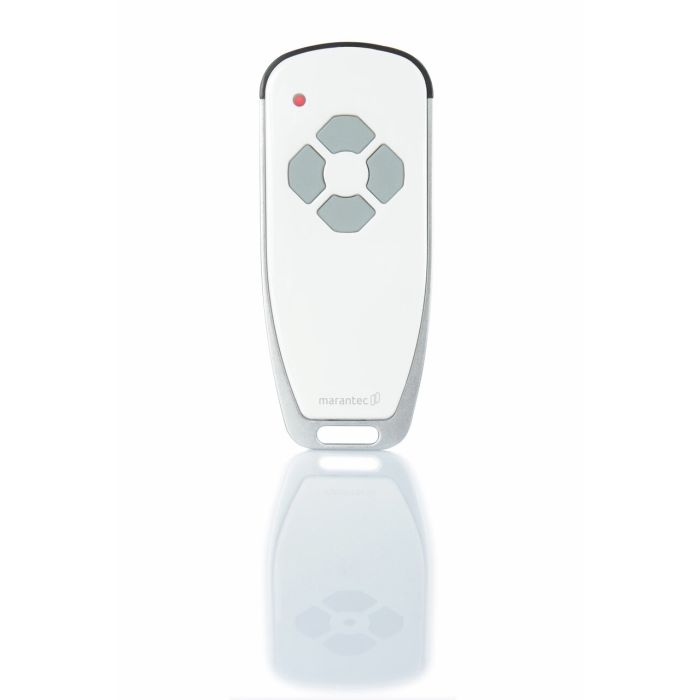

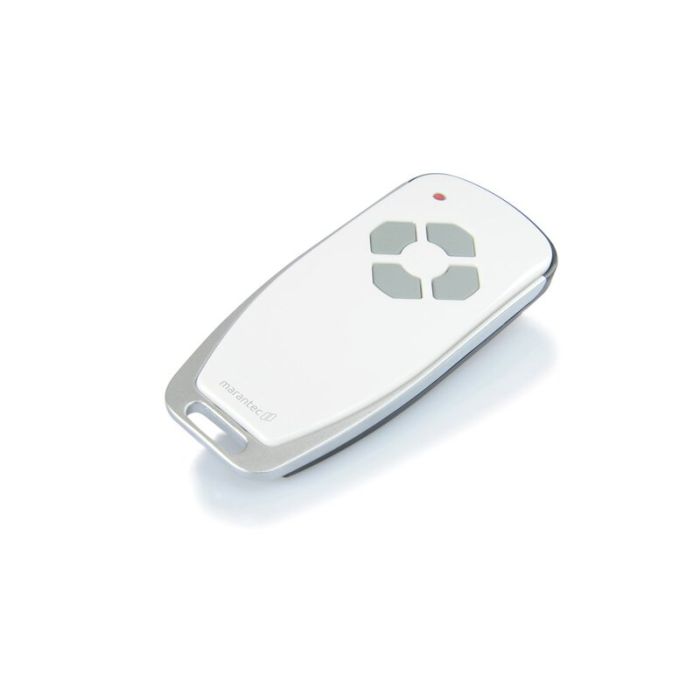

The Digital 564 is a:

• Compact handheld Bi·Linked remote transmitter
• Used for garage doors, gates, and industrial door systems
• Designed for multi-device control in one remote

 It is one of Marantec’s most versatile 4-button remotes in the Bi·Linked range.

---

Bi·Linked Radio System

The Digital 564 uses Marantec’s modern Bi·Linked platform:

• 128-bit AES encryption (bank-level security)
• Rolling code system (code changes every transmission)
• Unidirectional communication (remote → receiver only)

Meaning:

Every button press generates a unique encrypted signal, making copying extremely difficult.

---

Buttons & Functionality

Controls

• 4 freely programmable function buttons

What they can control

Each button can be assigned to:

• Garage door 1 / 2 / 3
• Gate system
• Lighting or auxiliary relay
• Industrial door functions

---

LED feedback

• Red LED indicator
  • Confirms transmission

---

Frequency Options

Depending on region:

• 868 MHz version

 Important:

• Must match receiver frequency exactly
• 433 and 868 versions are not interchangeable

---

Electrical & Power Specs

• Battery: CR2032 lithium coin cell (3V)
• Low power consumption → long battery life
• Replaceable battery

---

Physical Specifications

• Dimensions: 39 × 92 × 12 mm
• Weight: ~0.04 kg (40 g)
• Housing: Mini ergonomic design
• Attachment options:
  • Keyring loop

---



Compatibility

Works with:

Receivers

• Bi·Linked Digital 921
• Digital 941
• Digital 992
• Other Bi·Linked RF modules

Systems

• Garage door operators
• Industrial door controllers (CS-series with Bi-Linked receiver installed)
• Multi-door automation setups

---

Security System

Core security features

• AES 128-bit encryption
• Rolling code (changes every press)
• Unique pairing required per receiver

 Result:

• Cannot be cloned easily
• Safer than older Multi-Bit systems

---

Engineering Notes

Not compatible with Multi-Bit

• Bi·Linked ≠ Multi-Bit
• Completely different encryption system

---

Unidirectional system

• No feedback from door to remote
• (Unlike Digital 663, which is bidirectional)

---

Technical Summary

• Type: 4-button handheld transmitter
• System: Bi·Linked
• Frequency: 433 / 868 MHz
• Encryption: 128-bit AES rolling code
• Channels: 4 programmable buttons
• Power: CR2032 battery
• Communication: unidirectional RF
• Size: 39 × 92 × 12 mm
• Weight: ~40 g
• Temperature range: −20°C to +60°C

(The Company reserves the right to amend product specifications and information without notice.)
