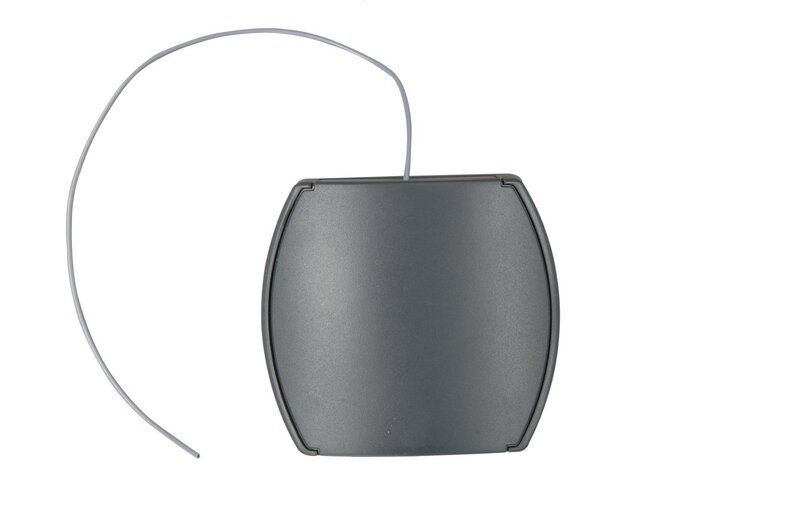

The Marantec Digital 992 bi.linked is a compact 2-channel radio receiver designed for secure wireless control of all types of automatic doors, gates, and third paty automation systems. Featuring advanced bi.linked radio technology and  128Bit rolling-code encrypted.

The Digital 992 is a:

• External radio receiver module
• Designed for Marantec’s Bi·Linked wireless system
• Used to convert wireless remote commands into relay switching outputs
• Typically installed in:
  • Garage door systems
  • Industrial door controllers
  • Gate automation systems

 In simple terms:

It is the “bridge” between modern Bi·Linked remotes and door/motor control electronics.

---

Bi·Linked Radio System

Core technology

Marantec Bi·Linked is their modern secure RF platform:

• 128-bit AES encryption (bank-level security)
• Rolling code system (code changes every use)
• Designed for high-security access control

Compared to older Multi-Bit:

• Much more secure
• Not fixed-code
• Resistant to cloning or replay attacks

---

Functional Overview

How it works

1. Bi·Linked remote sends encrypted signal
2. Digital 992 receives and decrypts it
3. Internal relays switch outputs
4. Door controller or motor is triggered

---

Key features

• 2 independent relay channels
• Each channel configurable:
  • Pulse mode (momentary trigger)
  • ON/OFF toggle mode
• External push-button inputs supported
• Programmable transmitter memory

---

Electrical Specifications

Power supply

• 12–24 V AC/DC

Outputs

• 2 potential-free relay contacts
• Rated approx:
  • 24V AC / 1A
  • 30V DC / 1A

---

Radio Specs

Depending on version:

• Frequency: 868 MHz (standard Bi·Linked band)
• Communication: Unidirectional (remote → receiver)
• Technology: Bi·Linked encrypted RF protocol

---

Memory Capacity

• Up to 100 transmitter codes per channel
• Total system capacity: up to ~200 stored codes (2 channels)

 Each channel is independent:

• Channel 1 → Door A
• Channel 2 → Door B / light / secondary function

---

Construction & Protection

Housing versions

• IP20 (indoor cabinet mounting)

---

Environmental Specs

• Operating temperature:
  • −20°C to +60°C

---

Integration Use

The Digital 992 is used with:

Compatible systems

• Marantec Bi·Linked transmitters:
  • Digital 506 / 572 / 564 / 663 etc.
• Door controllers:
  • CS series (CS300, CS320, etc.)
• Third-party automation systems

---

Typical Applications

Residential

• Garage doors
• Gate automation

Commercial / Industrial

• Warehouse roller doors
• Access control systems
• Multi-door installations

---

Key Engineering Notes

Not compatible with Multi-Bit

• Bi·Linked ≠ Multi-Bit
• They use completely different encryption systems

---

High-security system

Bi·Linked uses:

• Rolling AES encryption
• Prevents signal cloning
• Stronger encryption than older Multibit Marantec systems

---

Relay behavior matters

Each output can be configured as:

• Pulse (momentary trigger) → most common for doors
• Toggle (ON/OFF) → for lights or auxiliary systems

---

Technical Summary

• Type: 2-channel universal RF receiver
• System: Bi·Linked (128-bit AES rolling code)
• Frequency: 868 MHz
• Power: 12–24V AC/DC
• Outputs: 2 relay contacts (potential-free)
• Memory: ~100 transmitters per channel
• Modes: Pulse / ON-OFF selectable
• Protection: IP20
• Temp range: −20°C to +60°C

Specifications: bi.linked receiver with 100 memory positions; dimensions 7.0 x 6.4 x 3.5 cm

(The Company reserves the right to amend product specifications and information without notice.)
