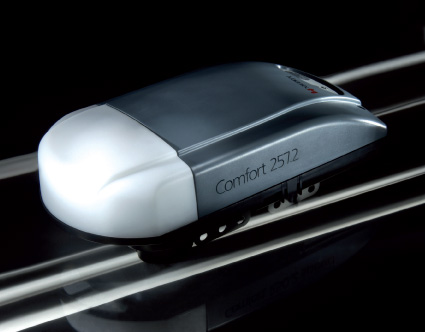

Marantec Comfort 257.2 for Mini Parkings (Rails not included)

R15 180,00 Incl. VAT

Reliable operator system for underground and collective parking applications with pre-cabled motor and control units, soft start / soft stop and anti-blocking protection.

Specifications: Current: INPUT 0.26KW; Speed: 140mm/s; Duty Cycle: S2-5min 50 cars (100 operations / day); Protection: Motor unit IP20.

FEATURES
Motor unit pre-cabled Separate control unit Control vario, pre-cabled Marantec EOS programming via LED Universal mounting kit for up-and-over doors and sectional doors Anti-blocking device Soft start / soft stop / soft run Used in conjunction with Marantec opener rails
SPECIFICATIONS
SUPPLY VOLTAGE	230V AC
CURRENT INPUT	0.26kW
CONTROL VOLTAGE	24V DC, max 50mA
CONSUMPTION	0.7A
DRIVE	1,000N
SPEED	140mm/s
DUTY CYCLE	S2-5min, 50 cars (100 operations / day)
LIFT CAPACITY	For up-and-over, single-walled sectional and double-walled sectional doors up to 6,000mm wide and 200kg
TEMPERATURE RANGE	-20ºC to +60ºC
PROTECTION	Motor unit IP20; control unit IP54
DIMENSIONS	Motor unit 220 x 125 x 395mm; control unit (small) 240 x 150 x 80mm; control unit (large) 240 x 300 x 80mm
WEIGHT	Total with control unit (small) 8.6kg; total with control unit (large) 9.1kg
LIGHT	Illuminant (energy saving bulb) 11 W / E14

(The Company reserves the right to amend product specifications and information without notice.)

Downloadable Resources

Comfort 257.2 Operators for Underground & Collective Parking Datasheet (PDF)
