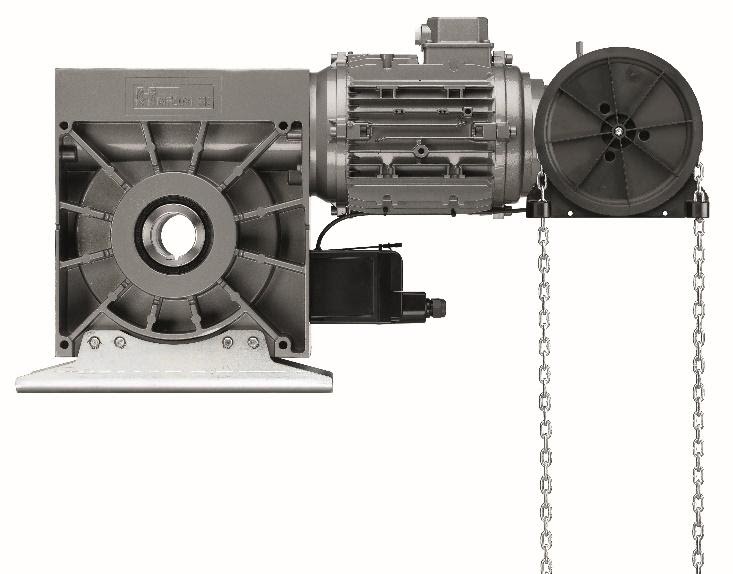

High-use direct drive automation for spring balanced roller shutters with programmable limits system, integrated safety catch, and crank or chain manual override options.
Specifications: High Use (HD); Integrated Programmable limits system; Crank or Chain Manual Override Options; Voltage: 380V AC @ 50 Hz (Three Phase); Current: INPUT 8.5 A; Torque: 1650 Nm
| FEATURES | |
|
|
| SPECIFICATIONS | |
| VOLTAGE | 380V AC @ 50 Hz (Three Phase) |
| CURRENT INPUT | 8.5 A |
| TORQUE | 1650 Nm |
| MOTOR OUTPUT | 2.2 kW |
| SPEED | 8 Rpm |
| DUTY CYCLE | 30 operations / Hour (Dependent on door size) |
| SHAFT DIAMETER | 55 mm (16mm keyway) |
| PROTECTION | IP54 |
| DIMENSIONS | 766 x 194 x 471mm |
| WEIGHT | 72 Kg |
High-use direct drive automation for spring balanced roller shutters with programmable limits system, integrated safety catch, and crank or chain manual override options.
Specifications: High Use (HD); Integrated Programmable limits system; Crank or Chain Manual Override Options; Voltage: 380V AC @ 50 Hz (Three Phase); Current: INPUT 8.5 A; Torque: 1650 Nm
| FEATURES | |
|
|
| SPECIFICATIONS | |
| VOLTAGE | 380V AC @ 50 Hz (Three Phase) |
| CURRENT INPUT | 8.5 A |
| TORQUE | 1650 Nm |
| MOTOR OUTPUT | 2.2 kW |
| SPEED | 8 Rpm |
| DUTY CYCLE | 30 operations / Hour (Dependent on door size) |
| SHAFT DIAMETER | 55 mm (16mm keyway) |
| PROTECTION | IP54 |
| DIMENSIONS | 766 x 194 x 471mm |
| WEIGHT | 72 Kg |
