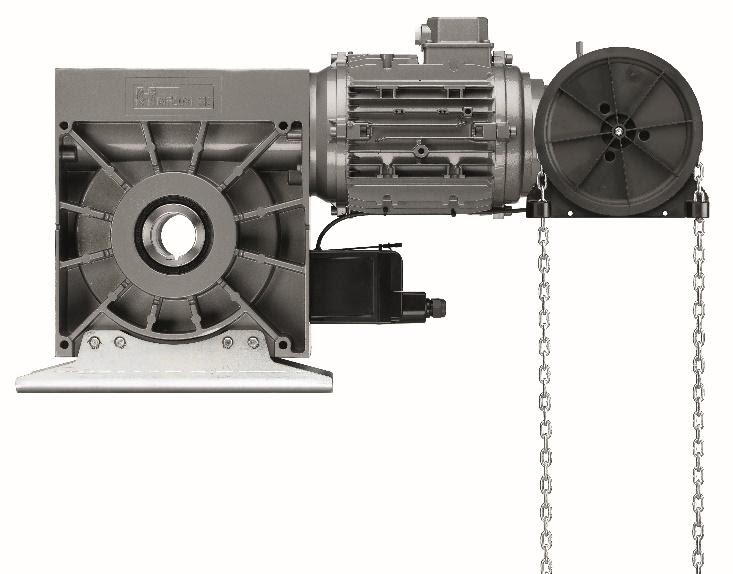

MDF 70-200-8 HD Roller Shutter Motor with Safety Catch Device

DIRECT DRIVE
Quality High Use Automation For Spring Balanced Roller Shutters

Specifications: High Use (HD); Integrated Programmable limits system; Crank or Chain Manual Override Options; Voltage: 380V AC @ 50 Hz (Three Phase); Current: INPUT 8.1 A; Torque: 2000 Nm

FEATURES
High Use (HD) Integrated Programmable limits system Crank or Chain Manual Override Options Integrated Safety Catch Robust, Strong & Durable Wide Range of Control Options 3 Phase 380V Thermal Overload Protection Higher Torque Models available up to 2000 Nm
SPECIFICATIONS
VOLTAGE	380V AC @ 50 Hz (Three Phase)
CURRENT INPUT	8.1 A
TORQUE	2000 Nm
MOTOR OUTPUT	2.5 kW
SPEED	8 Rpm
DUTY CYCLE	30 operations / Hour (Dependent on door size)
SHAFT DIAMETER	55 mm (16mm keyway)
PROTECTION	IP54
DIMENSIONS	779 x 216 x 491mm
WEIGHT	81 Kg

(The Company reserves the right to amend product specifications and information without notice.)
