R93, 300.00 Excl. VAT

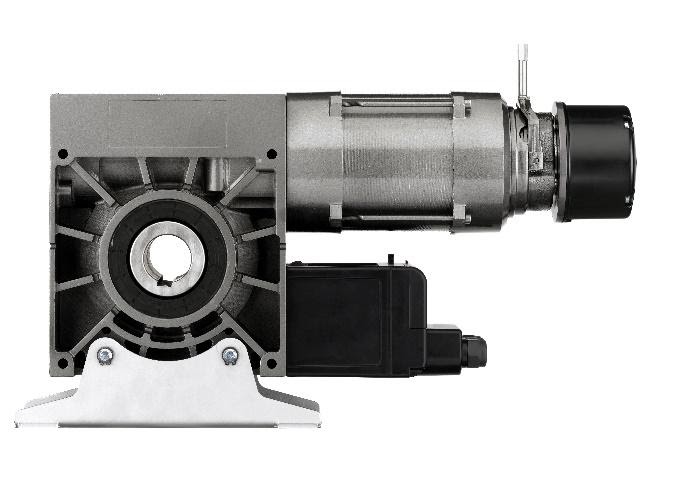

HIGH-SPEED DOOR DRIVE For Operation With a Frequency Convertor
Specifications: Heavy Duty (HD); High holding force via additional magnetic brake; Integrated Safety Catch; Voltage: 400V AC @ 50Hz (Three Phase); Current: RATING 7.0 A; Motor Output: 3.0 kW
| FEATURES | |
|
|
| SPECIFICATIONS | |
| VOLTAGE | 400V AC @ 50Hz (Three Phase) |
| CURRENT RATING | 7.0 A |
| DRIVE TORQUE | 250Nm @ 50Hz (182Nm @ 87Hz) |
| MOTOR OUTPUT | 3.0 kW |
| DUTY CYCLE | 45 operations / Hour (Dependent on door size) |
| SHAFT DIAMETER | 25.4mm or 30mm (8mm keyway) |
| PROTECTION | IP54 |
| DIMENSIONS | 593 x 174 x 370mm |
| WEIGHT | 37 Kg |
| TEMPERATURE RANGE | -20º to +60ºC |
|
|
|
Download: MTZ-FU 30-25-90 HD Specialized High Speed Door Operator Spec Sheet (PDF)
R93, 300.00 Excl. VAT
HIGH-SPEED DOOR DRIVE For Operation With a Frequency Convertor
Specifications: Heavy Duty (HD); High holding force via additional magnetic brake; Integrated Safety Catch; Voltage: 400V AC @ 50Hz (Three Phase); Current: RATING 7.0 A; Motor Output: 3.0 kW
| FEATURES | |
|
|
| SPECIFICATIONS | |
| VOLTAGE | 400V AC @ 50Hz (Three Phase) |
| CURRENT RATING | 7.0 A |
| DRIVE TORQUE | 250Nm @ 50Hz (182Nm @ 87Hz) |
| MOTOR OUTPUT | 3.0 kW |
| DUTY CYCLE | 45 operations / Hour (Dependent on door size) |
| SHAFT DIAMETER | 25.4mm or 30mm (8mm keyway) |
| PROTECTION | IP54 |
| DIMENSIONS | 593 x 174 x 370mm |
| WEIGHT | 37 Kg |
| TEMPERATURE RANGE | -20º to +60ºC |
|
|
|
Download: MTZ-FU 30-25-90 HD Specialized High Speed Door Operator Spec Sheet (PDF)
