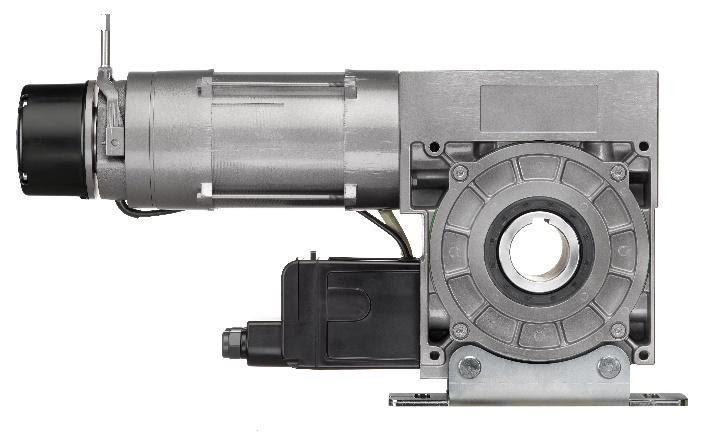

HIGH-SPEED DOOR DRIVE For Operation With a Frequency Convertor
Specifications: Heavy Duty (HD); High holding force via additional magnetic brake; Integrated Safety Catch; Voltage: 400V AC @ 50Hz (Three Phase); Current: RATING 8.8 A; Motor Output: 4.0 kW
| FEATURES | |
|
|
| SPECIFICATIONS | |
| VOLTAGE | 400V AC @ 50Hz (Three Phase) |
| CURRENT RATING | 8.8 A |
| DRIVE TORQUE | 290Nm @ 50Hz (203Nm @ 87Hz) |
| MOTOR OUTPUT | 4.0 kW |
| DUTY CYCLE | 45 operations / Hour (Dependent on door size) |
| SHAFT DIAMETER | 50mm |
| PROTECTION | IP54 |
| DIMENSIONS | 614 x 174 x 375mm |
| WEIGHT | 48 Kg |
| TEMPERATURE RANGE | -20º to +60ºC |
|
|
|
Download: MTZ-FU 50-29-105 HD Specialized High Speed Door Operator Spec Sheet (PDF)
HIGH-SPEED DOOR DRIVE For Operation With a Frequency Convertor
Specifications: Heavy Duty (HD); High holding force via additional magnetic brake; Integrated Safety Catch; Voltage: 400V AC @ 50Hz (Three Phase); Current: RATING 8.8 A; Motor Output: 4.0 kW
| FEATURES | |
|
|
| SPECIFICATIONS | |
| VOLTAGE | 400V AC @ 50Hz (Three Phase) |
| CURRENT RATING | 8.8 A |
| DRIVE TORQUE | 290Nm @ 50Hz (203Nm @ 87Hz) |
| MOTOR OUTPUT | 4.0 kW |
| DUTY CYCLE | 45 operations / Hour (Dependent on door size) |
| SHAFT DIAMETER | 50mm |
| PROTECTION | IP54 |
| DIMENSIONS | 614 x 174 x 375mm |
| WEIGHT | 48 Kg |
| TEMPERATURE RANGE | -20º to +60ºC |
|
|
|
Download: MTZ-FU 50-29-105 HD Specialized High Speed Door Operator Spec Sheet (PDF)
