EURODRIVE MANUAL OVERIDE TUBULAR MOTOR ED330



 FEATURES
  • Manual Override – Push engage
  • Silent Operation
  • Mechanical Limits
  • Adaptors to suit tube Ø 101.6mm to 139.7mm

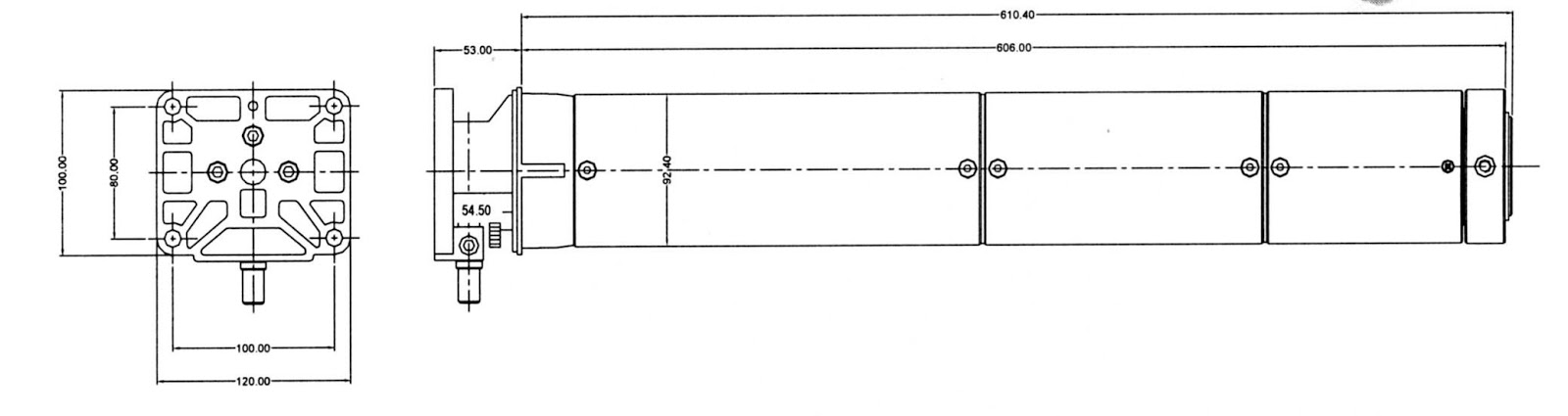

  • 53mm offset – mounting bracket not required
  • Range of control options
  • Manufactured to High European Standards
SPECIFICATIONS
POWER SUPPLY 230V 50Hz
CURRENT  4.8 A
POWER 980 W
TORQUE 330 Nm
SPEED 8 RPM
LIFTING CAPACITY 450kg @ 100mm

350kg @ 127mm

335kg @ 133mm

320kg @ 139.7mm

STANDARD ADAPTORS FOR TUBES

(If non-standard adaptors are required please contact Dortech with your requirements)

101.6mm x 3.66mm (94mm)

101.6mm x 1.63mm (97mm)

127 mm x 3.25mm (119mm)

133mm x 5mm (123mm)

139.7 x 5mm (128mm)

(The Company reserves the right to amend product specifications and information without notice.)
