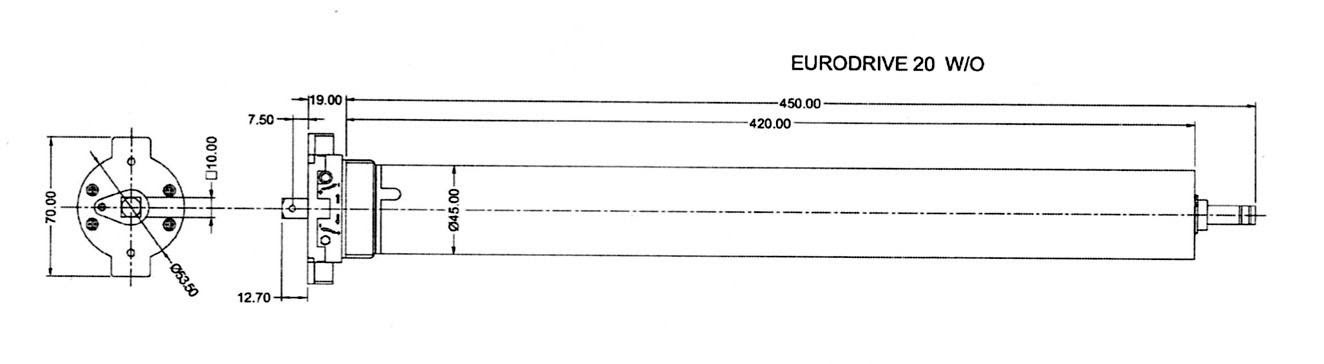

EURODRIVE TUBULAR MOTOR ED20

FEATURES
  • Silent Operation
  • Mechanical Limits
  • Adaptors to suit tube Ø 60mm to 101.6mm
  • From 21mm offset including mounting Bracket
  • Wide range of control options
SPECIFICATIONS
POWER SUPPLY 230V 50Hz
CURRENT  0.8 A
POWER 178 W
TORQUE 20 Nm
SPEED 17 RPM
LIFTING CAPACITY 30kg @ 100mm

35kg @ 90mm

35kg @ 80mm

45kg @ 70mm

50kg @ 60mm

55kg @ 50mm

Page 1 of 2



STANDARD ADAPTORS FOR TUBES

(If non-standard adaptors are required please contact Dortech with your requirements)

101.6mm x 3.66mm (94mm)

101.6mm x 1.63mm (97mm)

89mm x 1.5mm (85mm)

80mm x 1.5mm (76mm)

80mm x 2mm (75mm)

70mm x 1.5mm (67mm)

64mm x 1.5mm (60mm)

63mm x 1mm (60mm)

60mm x 1.5mm (56mm)

70mm Octagonal (67mm)

60mm Octagonal (57mm)

50mm Octagonal (48mm)

(The Company reserves the right to amend product specifications and information without notice.)
